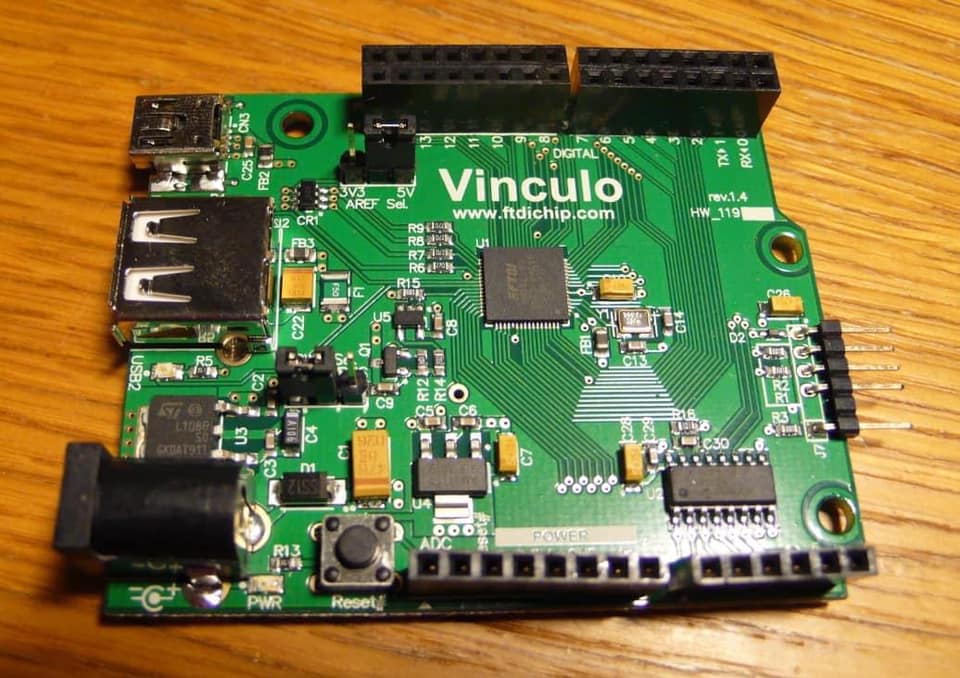

Vinculo (inspired by Arduino) is a cost effective Vinculum-II (VNC2) development platform, designed to support rapid prototyping and development of USB 2.0 based processing applications with open-source hardware and software. Vinculo supports the software drivers and libraries developed for the Vinculum II controller.
Vinculo Platform Features: • Onboard VNC2-64 USB dual channel Host / Device controller with a powerful 16-bit / 48MHz MCU core, 256KB Flash and 16KB SRAM which also supports UART, FIFO, SPI (master and slave), PWM and GPIO interfaces. • The Vinculo I/O expansion bus is a superset of the popular Arduino Duemilanove / Uno platform with 2 extra rows of headers providing 10 additional interface pins thus making it easier to develop IO Boards (Shields) whilst avoiding hardware resource conflicts between different IO add-on cards. • USB standard ‘A’ and mini ‘B’ connectors. • 8-channel / 10-bit ADC and PWM interfaces. • 38 general purpose I/Os (30 digital, 8 analogue). • The Vinculo supports connectivity to a wide range of application boards developed by the Arduino open-source community. These include Ethernet, motor control, LCD and many others. • The Vinculo uses a subset of standard ANSII ‘C’ (instead of the wiring/processing based software platform) with FTDI supported, free-of-charge software development tools, libraries and reference designs. • Debugger interface to the VNC2 DEBUG MODULE for rapid firmware debugging. • Same PCB form factor as Arduino. • Compatible with the Vinculo_Proto shield development board (VNCLO-SHLD-1A - available below) • 9V/1A DC input or USB powered (dependant on USB Host interface current requirements)
PLEASE NOTE THAT THE SEPERATE POWER SUPPLY FOR 9V DC INPUT IS SOLD SEPERATELY
